Breathing circuits

Breathing circuits

All Coaxial Neonatal With one water trap With two water traps Without water trap

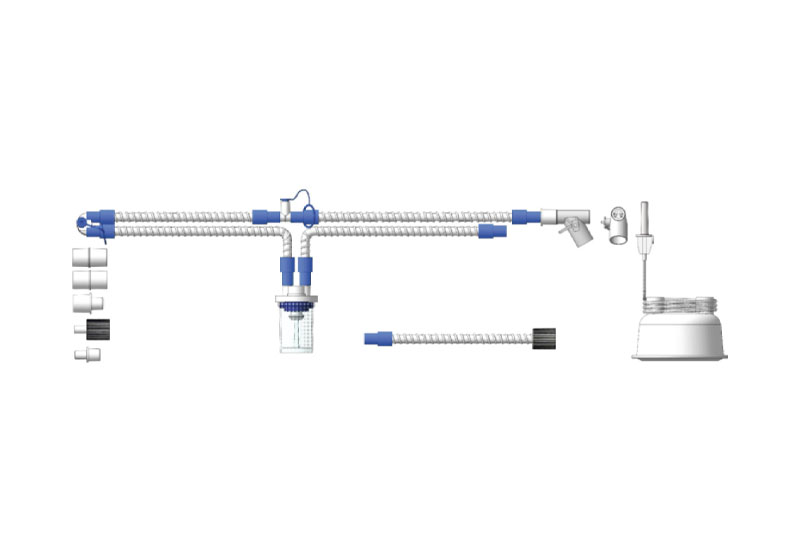

Breathing circuit with one water trap, model 6604
Breathing circuit with one water trap, model 6604

Y-adapter (1 pc);
Straight adapter (8 pcs);
T-connector (1 pc);
Water trap (1 pc);
Humidifier (1 pc);
Tube (5 pcs);
Heating wire (1 pc)

Neonatal breathing circuits are intended for respiratory support in anesthesiology and neonatal intensive care and are compatible with most mechanical ventilators (MV) and anesthesia machines (AM).

Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Non-pyrogenic., non-toxic, phthalate-free.
Non-sterile or sterilized with ethylene oxide.
Non-configurable corrugated or smooth-bore tube

Breathing circuits equipped with heating wires ensure temperature control of the gas mixture delivered to the patient, providing optimal temperature conditions for mechanical ventilation and preventing condensation inside the circuit lumen.
Breathing circuits are supplied with various products and accessories.
Specifications, types, dimensions, and quantities of products are determined by the customer.
Components included in the circuit may be packed in separate packaging and then placed together with the product in a common package or supplied alongside it.

View

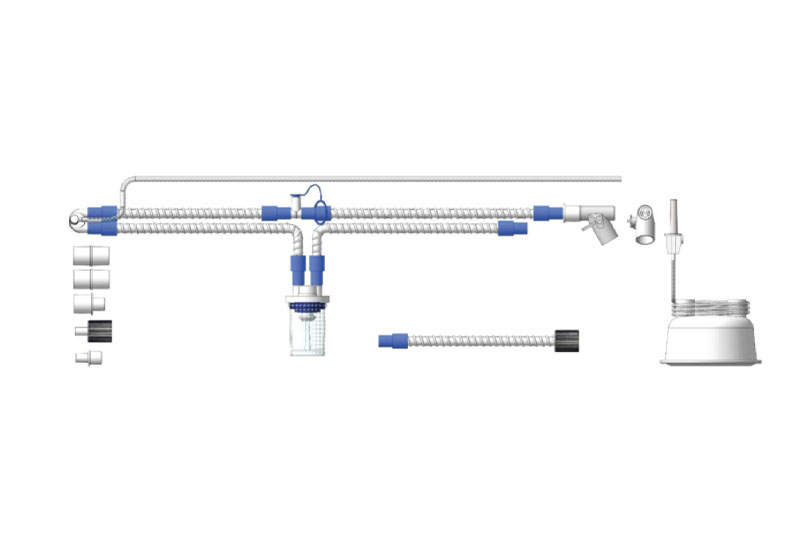

Breathing circuit with one water trap, model 6605
Breathing circuit with one water trap, model 6605

Y-adapter (1 pc);
Straight adapter (8 pcs);
T-connector (1 pc);
Water trap (1 pc);
Humidifier (1 pc);
Tube (5 pcs);
Heating wire (1 pc);
Monitoring line (1 pc)

Neonatal breathing circuits are intended for respiratory support in anesthesiology and neonatal intensive care and are compatible with most mechanical ventilators (MV) and anesthesia machines (AM).

Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Non-pyrogenic., non-toxic, phthalate-free.
Non-sterile or sterilized with ethylene oxide.
Non-configurable corrugated or smooth-bore tube

Breathing circuits equipped with heating wires ensure temperature control of the gas mixture delivered to the patient, providing optimal temperature conditions for mechanical ventilation and preventing condensation inside the circuit lumen.
Breathing circuits are supplied with various products and accessories.
Specifications, types, dimensions, and quantities of products are determined by the customer.
Components included in the circuit may be packed in separate packaging and then placed together with the product in a common package or supplied alongside it.

View

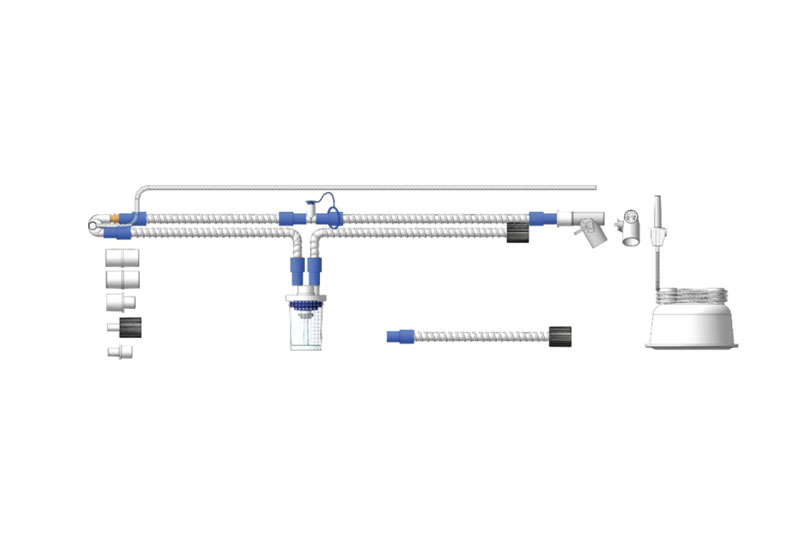

Breathing circuit with one water trap, model 6606
Breathing circuit with one water trap, model 6606

Y-adapter (1 pc);
Straight adapter (8 pcs);
T-connector (1 pc);
Water trap (1 pc);
Humidifier (1 pc);
Tube (5 pcs);
Heating wire (1 pc);
Monitoring line (1 pc);
Flow restrictor (1 pc)

Neonatal breathing circuits are intended for respiratory support in anesthesiology and neonatal intensive care and are compatible with most mechanical ventilators (MV) and anesthesia machines (AM).

Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Non-pyrogenic., non-toxic, phthalate-free.
Non-sterile or sterilized with ethylene oxide.
Non-configurable corrugated or smooth-bore tube

Breathing circuits equipped with heating wires ensure temperature control of the gas mixture delivered to the patient, providing optimal temperature conditions for mechanical ventilation and preventing condensation inside the circuit lumen.
Breathing circuits are supplied with various products and accessories.
Specifications, types, dimensions, and quantities of products are determined by the customer.
Components included in the circuit may be packed in separate packaging and then placed together with the product in a common package or supplied alongside it.

View

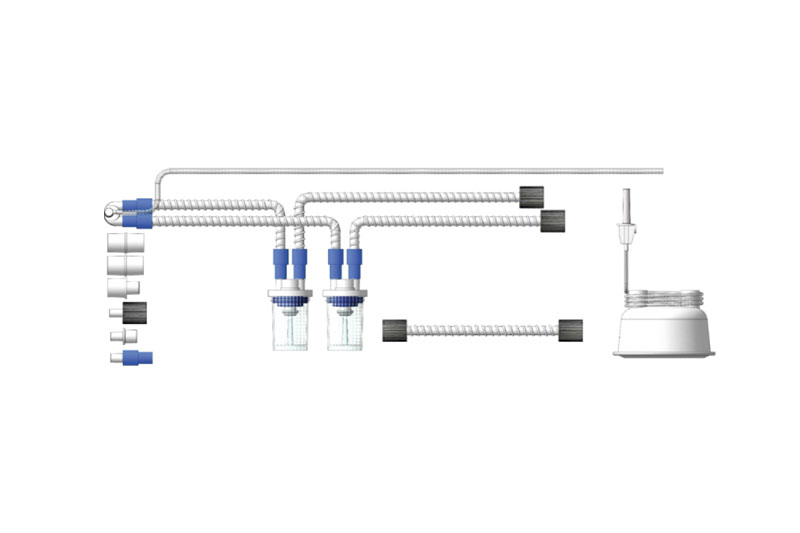

Breathing circuit with two water trap, model 6603
Breathing circuit with two water trap, model 6603

Y-adapter (1 pc);
Straight adapter (8 pcs);
T-connector (1 pc);
Water trap (1 pc);
Humidifier (1 pc);
Tube (5 pcs);
Heating wire (1 pc)

Neonatal breathing circuits are intended for respiratory support in anesthesiology and neonatal intensive care and are compatible with most mechanical ventilators (MV) and anesthesia machines (AM).

Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Non-pyrogenic., non-toxic, phthalate-free.
Non-sterile or sterilized with ethylene oxide.
Non-configurable corrugated or smooth-bore tube

Breathing circuits equipped with heating wires ensure temperature control of the gas mixture delivered to the patient, providing optimal temperature conditions for mechanical ventilation and preventing condensation inside the circuit lumen.
Breathing circuits are supplied with various products and accessories.
Specifications, types, dimensions, and quantities of products are determined by the customer.
Components included in the circuit may be packed in separate packaging and then placed together with the product in a common package or supplied alongside it.

View

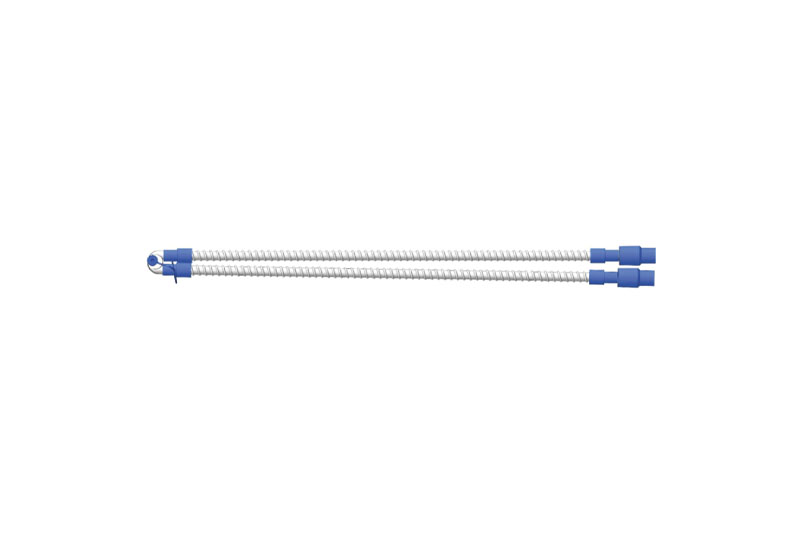

Breathing circuit without water trap, model 6601
Breathing circuit without water trap, model 6601

Y-adapter (1 pc);
Straight adapter (2 pcs);
Tube (2 pcs)

N – Non-configurable corrugated

S – Smooth-bore

Neonatal breathing circuits are intended for respiratory support in anesthesiology and neonatal intensive care and are compatible with most mechanical ventilators (MV) and anesthesia machines (AM).

Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Non-pyrogenic, non-toxic, phthalate-free.
Non-sterile or sterilized with ethylene oxide.
Non-configurable corrugated or smooth-bore tube.

Breathing circuits equipped with heating wires ensure temperature control of the gas mixture delivered to the patient, providing optimal temperature conditions for mechanical ventilation and preventing condensation inside the circuit lumen.
Breathing circuits are supplied with various products and accessories.
Specifications, types, dimensions, and quantities of products are determined by the customer.
Components included in the circuit may be packed in separate packaging and then placed together with the product in a common package or supplied alongside it.

View

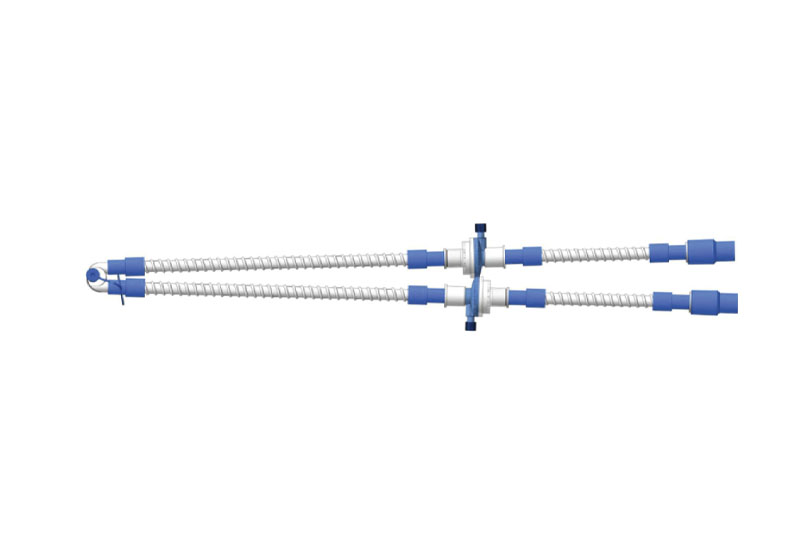

Breathing circuit without water trap, model 6602
Breathing circuit without water trap, model 6602

Y-adapter (1 pc);
Straight adapter (2 pcs);
Filter with heat and moisture exchange (2 pcs);
Tube (4 pcs)

N – Non-configurable corrugated

S – Smooth-bore

Neonatal breathing circuits are intended for respiratory support in anesthesiology and neonatal intensive care and are compatible with most mechanical ventilators (MV) and anesthesia machines (AM).

Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Non-pyrogenic, non-toxic, phthalate-free.
Non-sterile or sterilized with ethylene oxide.
Non-configurable corrugated or smooth-bore tube.

Breathing circuits equipped with heating wires ensure temperature control of the gas mixture delivered to the patient, providing optimal temperature conditions for mechanical ventilation and preventing condensation inside the circuit lumen.
Breathing circuits are supplied with various products and accessories.
Specifications, types, dimensions, and quantities of products are determined by the customer.
Components included in the circuit may be packed in separate packaging and then placed together with the product in a common package or supplied alongside it.

View

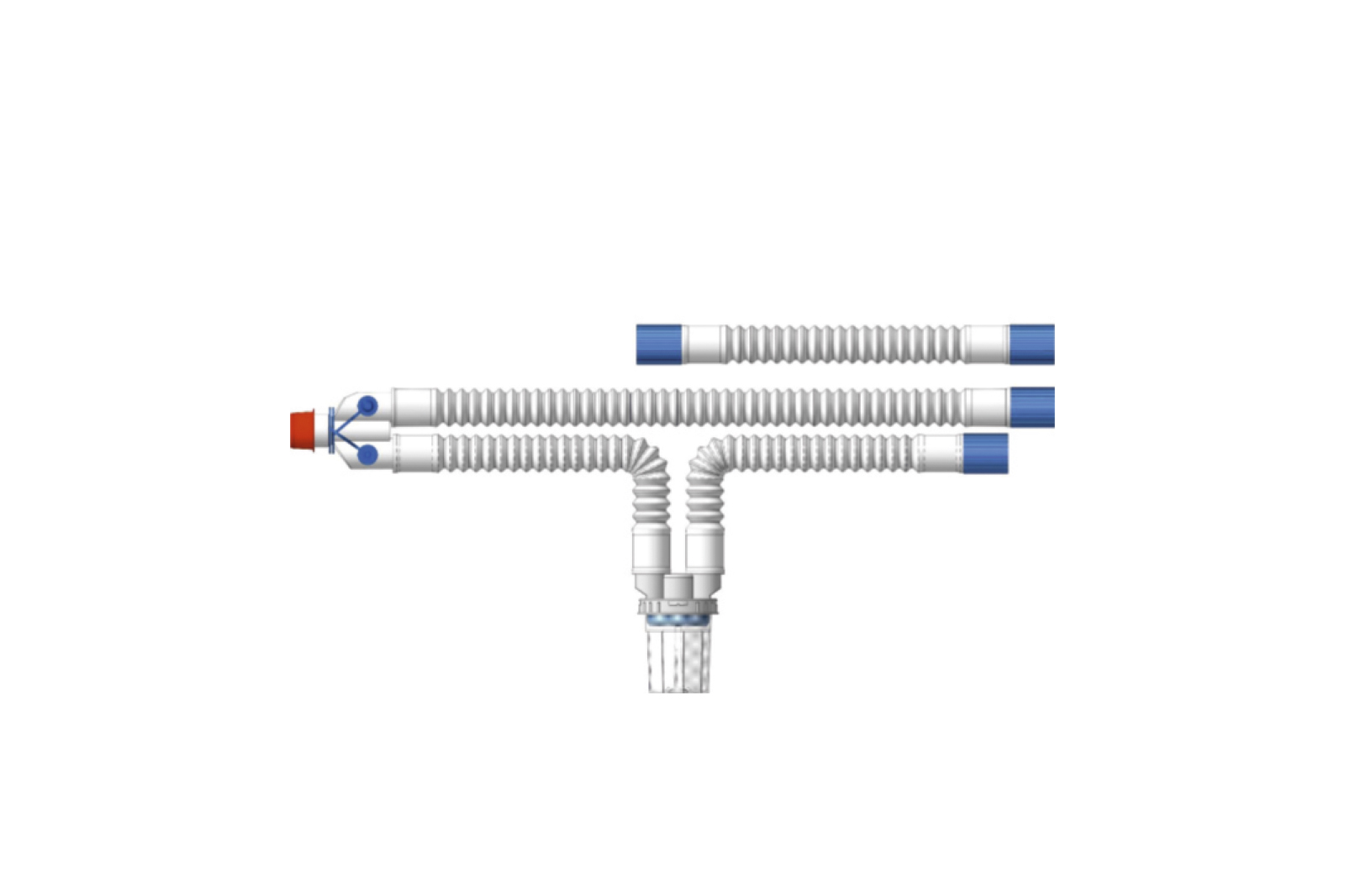

Breathing circuits with one water trap, model 3402/5602
Breathing circuits with one water trap, model 3402/5602

Y-adapter (1 pc);
Straight adapter (4 pcs);
Water trap (1 pc);
Tubes (4 pcs)

Length: 0.3–3 m
Diameter: 3402-22mm / 5602-15 mm
C – Configurable corrugated
N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

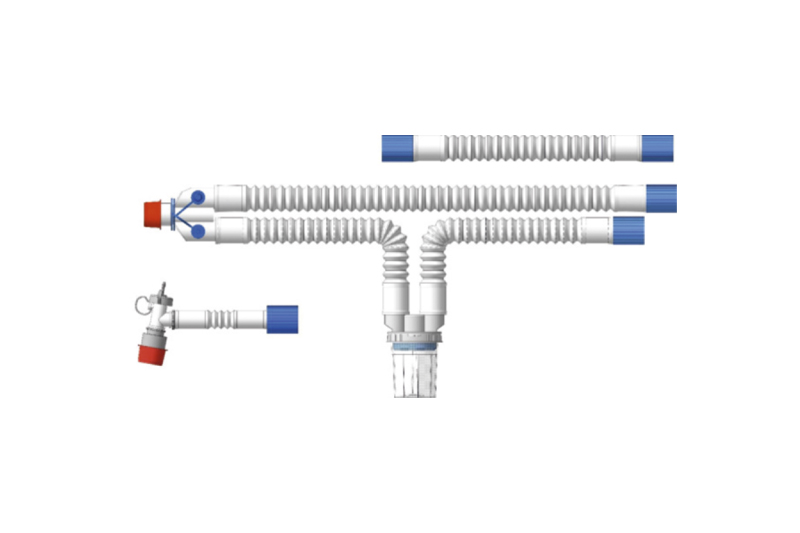

Breathing circuits with one water trap, model 3403/5603
Breathing circuits with one water trap, model 3403/5603

Y-adapter (1 pc);
Straight adapter (4 pcs);
Swivel adapter (1 pc);
Water trap (1 pc);
Tubes (4 pcs)

Length: 0.3–3 m
Diameter: 22mm/15 mm

C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

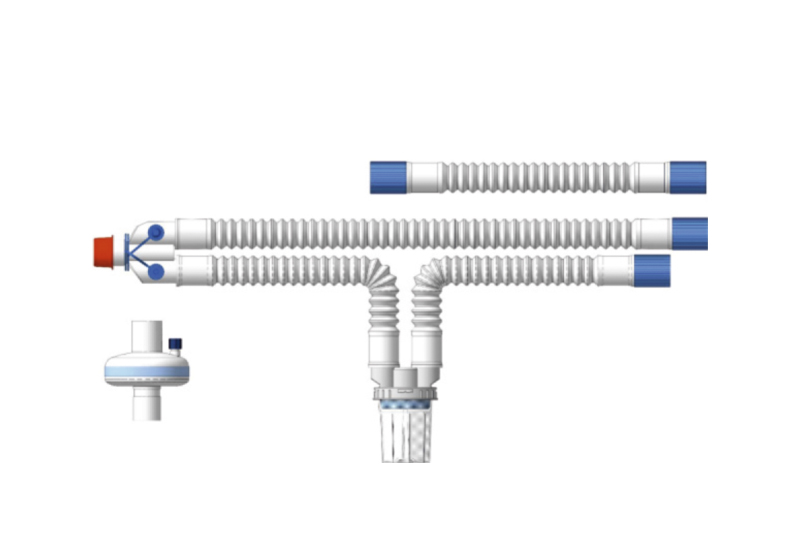

Breathing circuits with one water trap, model 3503/5703
Breathing circuits with one water trap, model 3503/5703

Y-adapter (1 pc);
Straight adapter (4 pcs);
Water trap (1 pc);
Filter with/without heat and moisture exchange (1 pc);
Tubes (4 pcs)

Length: 0.3–3 m
Diameter: 22mm/15 mm

C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

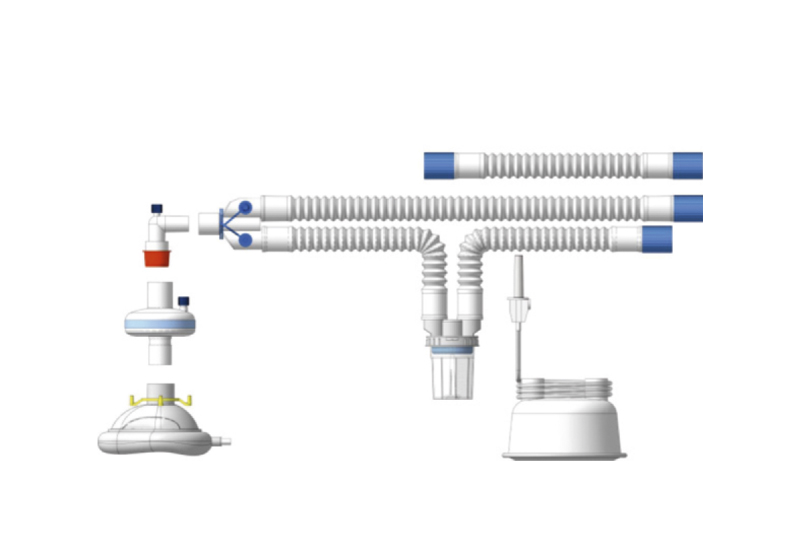

Breathing circuits with one water trap, model 3505/5705
Breathing circuits with one water trap, model 3505/5705
Y-adapter (1 pc);
Straight adapter (4 pcs);
Angular adapter (1 pc);
Water trap (1 pc);
Filter with/without heat and moisture exchange (1 pc);
Humidifier (1 pc);
Tubes (4 pcs);
Breathing mask (1 pc)

Length: 0.3–3 m
Diameter: 22mm/15 mm

C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

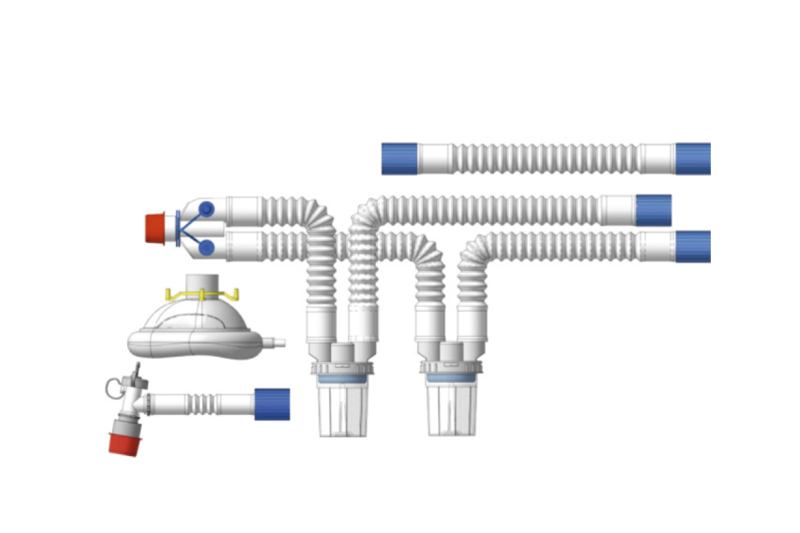

Breathing circuits with two water trap, model 3406/5606
Breathing circuits with two water trap, model 3406/5606

Y-adapter (1 pc);
Straight adapter (4 pcs);
Swivel adapter (1 pc);
Water trap (2 pcs);
Tubes (5 pcs);
Breathing mask (1 pc)

Length: 0.3–3 m
Diameter: 22mm/15 mm

C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

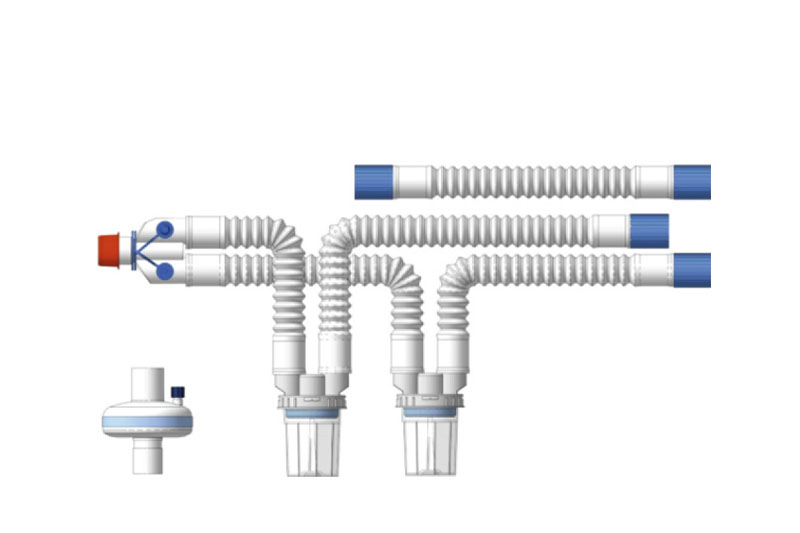

Breathing circuits with two water trap, model 3504/5704
Breathing circuits with two water trap, model 3504/5704

Y-adapter (1 pc);
Straight adapter (4 pcs);
Water trap (2 pcs);
Filter with/without heat and moisture exchange (1 pc);
Tubes (5 pcs)

Length: 0.3–3 m
Diameter: 22mm/15 mm

C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

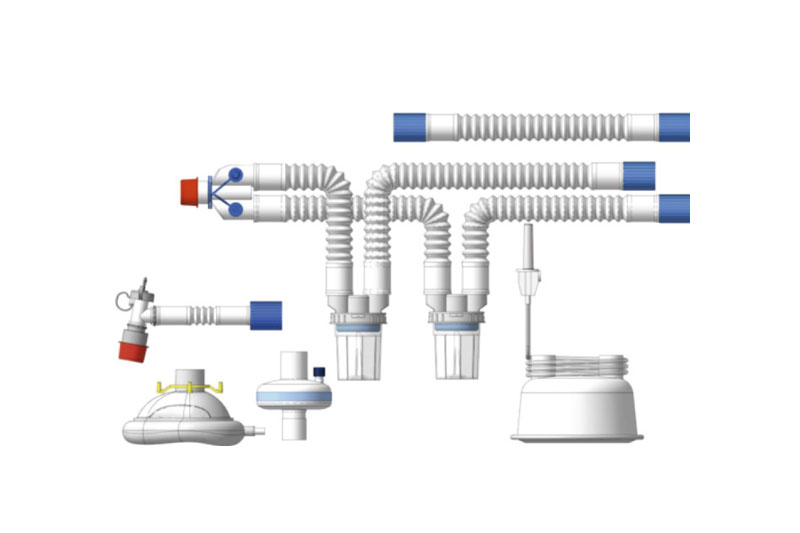

Breathing circuits with two water trap, model 3506/5706
Breathing circuits with two water trap, model 3506/5706

Y-adapter (1 pc);
Straight adapter (4 pcs);
Swivel adapter (1 pc);
Water trap (2 pcs);
Filter with/without heat and moisture exchange (1 pc);
Humidifier (1 pc);
Tubes (5 pcs);
Breathing mask (1 pc)

Length: 0.3–3 m
Diameter: 22mm/15 mm

C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

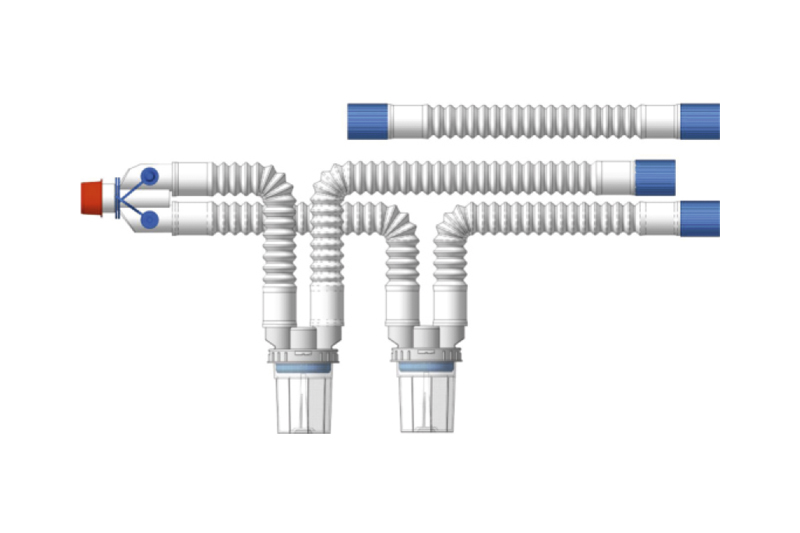

Breathing circuits with two water traps, model 3404/5604
Breathing circuits with two water traps, model 3404/5604

Y-adapter (1 pc);
Straight adapter (4 pcs);
Water trap (2 pcs);
Tubes (5 pcs)

Length: 0.3–3 m
Diameter: 22mm/15 mm

C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

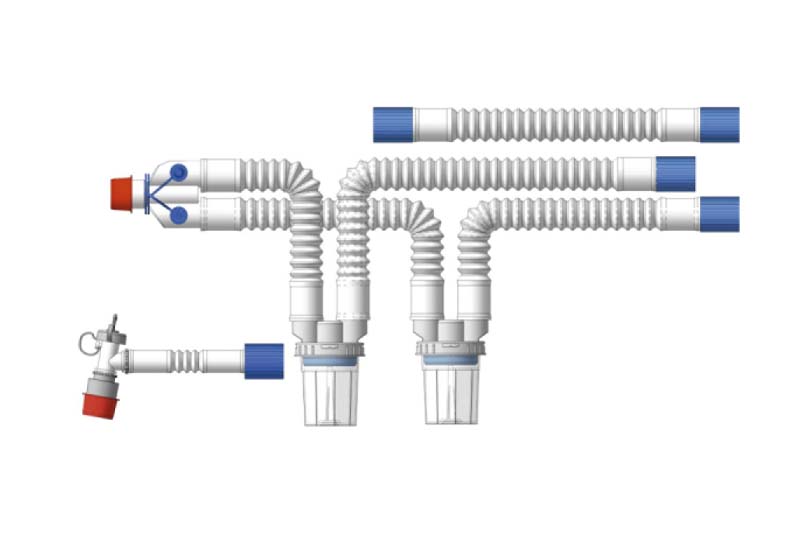

Breathing circuits with two water traps, model 3405/5605
Breathing circuits with two water traps, model 3405/5605

Y-adapter (1 pc);
Straight adapter (4 pcs);
Swivel adapter (1 pc);
Water trap (2 pcs);
Tubes (5 pcs)

Length: 0.3–3 m
Diameter: 22mm/15 mm

C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

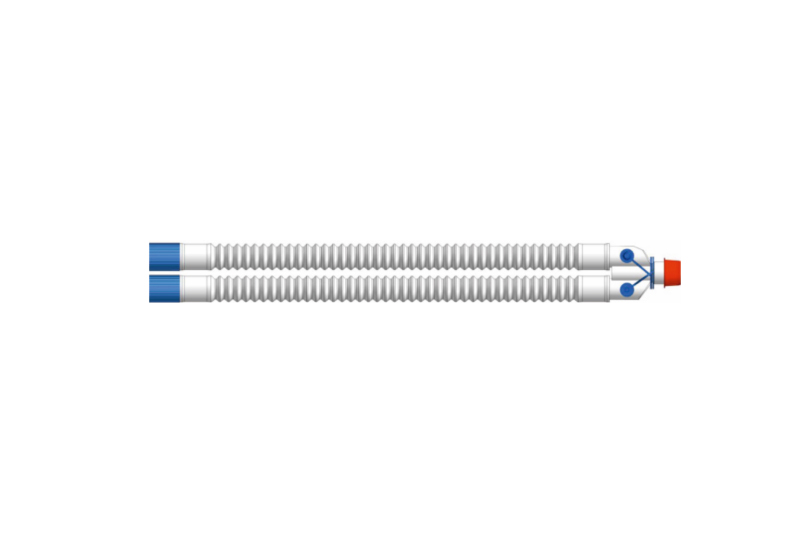

Breathing circuits without trap, model 3300/5500
Breathing circuits without trap, model 3300/5500
  • Y-adapter (1 pc)
  • Straight adapter (2 pcs)
  • Tubes (2 pcs)
  • Length: 0.3–3 m
  • Diameter: 3300-22mm / 5500-15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View

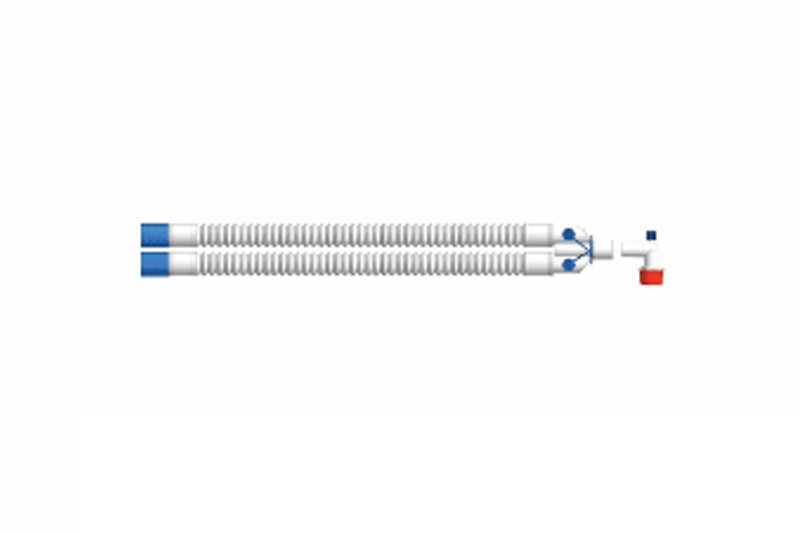

Breathing circuits without trap, model 3301/5501
Breathing circuits without trap, model 3301/5501
  • Y-adapter (1 pc);
  • Straight adapter (2 pcs);
  • Angular adapter (1 pc);
  • Tubes (2 pcs)
  • Length: 0.3–3 m
  • Diameter: 22mm / 15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Breathing circuits without trap, model 3302/5502
Breathing circuits without trap, model 3302/5502
  • Y-adapter (1 pc);
  • Straight adapter (4 pcs);
  • Angular adapter (1 pc);
  • Tubes (3 pcs)
  • Length: 0.3–3 m
  • Diameter: 3301-22mm / 5501-15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Breathing circuits without trap, model 3303/5503
Breathing circuits without trap, model 3303/5503
  • Y-adapter (1 pc);
  • Straight adapter (4 pcs);
  • Swivel adapter (1 pc);
  • Tubes (3 pcs)
  • Length: 0.3–3 m
  • Diameter: 22mm / 15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Breathing circuits without trap, model 3304/5504
Breathing circuits without trap, model 3304/5504
  • Y-adapter (1 pc);
  • Straight adapter (5 pcs);
  • Angular adapter (1 pc);
  • Tubes (3 pcs);
  • Breathing bag (1 pc)
  • Length: 0.3–3 m
  • Diameter: 3301-22mm / 5501-15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Breathing circuits without trap, model 3400/5600
Breathing circuits without trap, model 3400/5600

Y-adapter (1 pc);
Straight adapter (4 pcs);
Angular adapter (1 pc);
Tubes (3 pcs);
Breathing mask (1 pc)

  • Length: 0.3–3 m
  • Diameter: 3301-22mm / 5501-15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Breathing circuits without trap, model 3401/5601
Breathing circuits without trap, model 3401/5601

Y-adapter (1 pc);
Straight adapter (4 pcs);
Swivel adapter (1 pc);
Tubes (3 pcs);
Breathing mask (1 pc)

  • Length: 0.3–3 m
  • Diameter: 3301-22mm / 5501-15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Breathing circuits without trap, model 3500/5700
Breathing circuits without trap, model 3500/5700
  • Y-adapter (1 pc);
  • Straight adapter (2 pcs);
  • Angular adapter (1 pc);
  • Filter with/without heat and moisture
    exchange (1 pc);
  • Tubes (2 pcs)
  • Length: 0.3–3 m
  • Diameter: 3301-22mm / 5501-15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Breathing circuits without trap, model 3501/5701
Breathing circuits without trap, model 3501/5701

Y-adapter (1 pc);
Straight adapter (5 pcs);
Angular adapter (1 pc);
Filter with/without heat and moisture exchange (1 pc);
Tubes (3 pcs);
Breathing bag (1 pc)

  • Length: 0.3–3 m
  • Diameter: 3301-22mm / 5501-15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Breathing circuits without trap, model 3502/5702
Breathing circuits without trap, model 3502/5702

Y-adapter (1 pc);
Straight adapter (4 pcs);
Angular adapter (1 pc);
Filter with/without heat and moisture exchange (1 pc);
Tubes (3 pcs);
Breathing mask (1 pc)

  • Length: 0.3–3 m
  • Diameter: 22mm / 15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Breathing circuits without trap, model 3600/5900
Breathing circuits without trap, model 3600/5900
  • Tube (1 pc);
  • Straight adapter (1 pc);
  • Swivel adapter with tube (1 pc);
  • Monitoring line (2 pcs);
  • Flow sensor (1 pc);
  • Exhalation valve (1 pc);
  • Cap (1 pc);
  • Fixation clip (1 pc)
  • Length: 0.3–3 m
  • Diameter: 3300-22mm / 5500-15 mm
  • C – Configurable corrugated

N – Non-configurable corrugated

S – Smooth-bore

Cag – Configurable corrugated antimicrobial (with silver ions)

Nag – Non-configurable corrugated antimicrobial (with silver ions)

Compatible with most ventilators and anesthesia machines

View
Circuito de respiración con dos colectores de humedad, modelo 3405/5605
Circuito de respiración con dos colectores de humedad, modelo 3405/5605
  • Adaptador en Y (1 ud.)
  • Adaptador recto (4 uds.)
  • Adaptador articulado (1 ud.)
  • Colector de humedad (2 uds.)
  • Tubos (5 uds.)

La longitud del contorno es de 0,4 m a 5,0 m.
Diámetro: 22mm / 15 mm
C – Corrugado configurable
N – Corrugado no configurable
S – De lumen liso
Cag – Corrugado configurable antimicrobiano (con iones de plata)
Nag – Corrugado no configurable antimicrobiano (con iones de plata)

Сompatible con la mayoría de ventiladores y máquinas de anestesia

View
Coaxial breathing circuits, model 5800/4400
Coaxial breathing circuits, model 5800/4400

Angular adapter (1 pc);
Straight adapter (3 pcs);
T-connector (1 pc);
Tube (2 pcs)

A coaxial circuit is a breathing circuit in which the inspiratory line is located inside the expiratory line. The fresh gas mixture passing through the inner tube is warmed by the exhaled gases.

Non-sterile or sterilized with ethylene oxide.
Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Non-pyrogenic, non-toxic, phthalate-free.
Shelf life (sterility) – 5 years from the date of manufacture.

View
Coaxial breathing circuits, model 5801/4401
Coaxial breathing circuits, model 5801/4401

Angular adapter (1 pc);
Straight adapter (3 pcs);
T-connector (1 pc);
Tube (2 pcs);
Monitoring line (1 pc)

A coaxial circuit is a breathing circuit in which the inspiratory line is located inside the expiratory line. The fresh gas mixture passing through the inner tube is warmed by the exhaled gases.



Non-sterile or sterilized with ethylene oxide.
Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Non-pyrogenic, non-toxic, phthalate-free.
Shelf life (sterility) – 5 years from the date of manufacture.

View
Coaxial breathing circuits, model 5802/4402
Coaxial breathing circuits, model 5802/4402

Angular adapter (1 pc);
Straight adapter (3 pcs);
T-connector (1 pc);
Tube (2 pcs);
Breathing bag (1 pc)

A coaxial circuit is a breathing circuit in which the inspiratory line is located inside the expiratory line. The fresh gas mixture passing through the inner tube is warmed by the exhaled gases.



Non-sterile or sterilized with ethylene oxide.
Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Non-pyrogenic, non-toxic, phthalate-free.
Shelf life (sterility) – 5 years from the date of manufacture.

View
