Breathing mask
Non-sterile or sterilized with ethylene oxide.
Individually packaged.
Protection against moisture during storage.
Latex-free.
Non-pyrogenic, non-toxic, phthalate-free.
Shelf life (sterility) – 5 years from the date of manufacture.
Single-use Size: 2; 3; 4; 5.

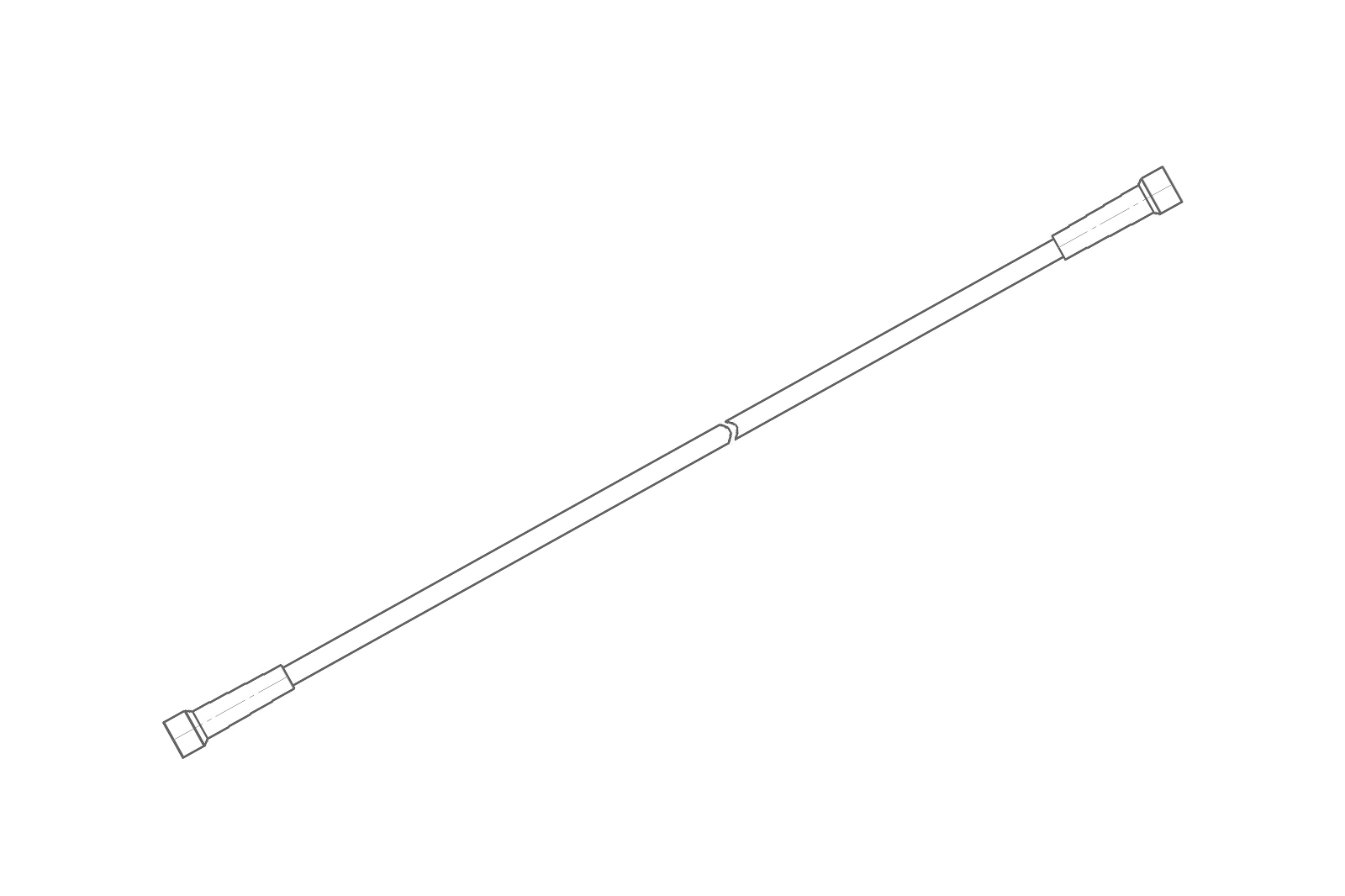

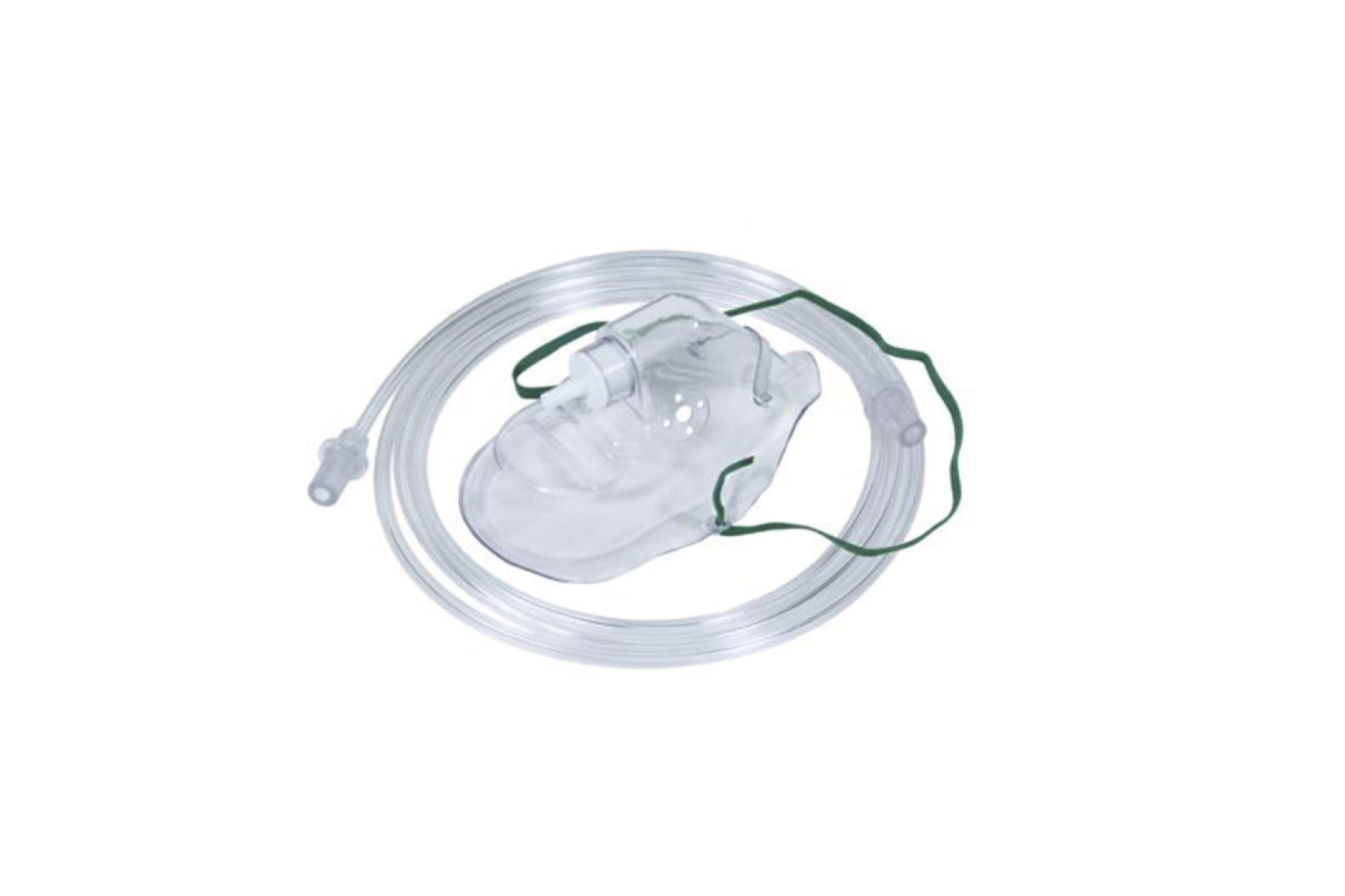

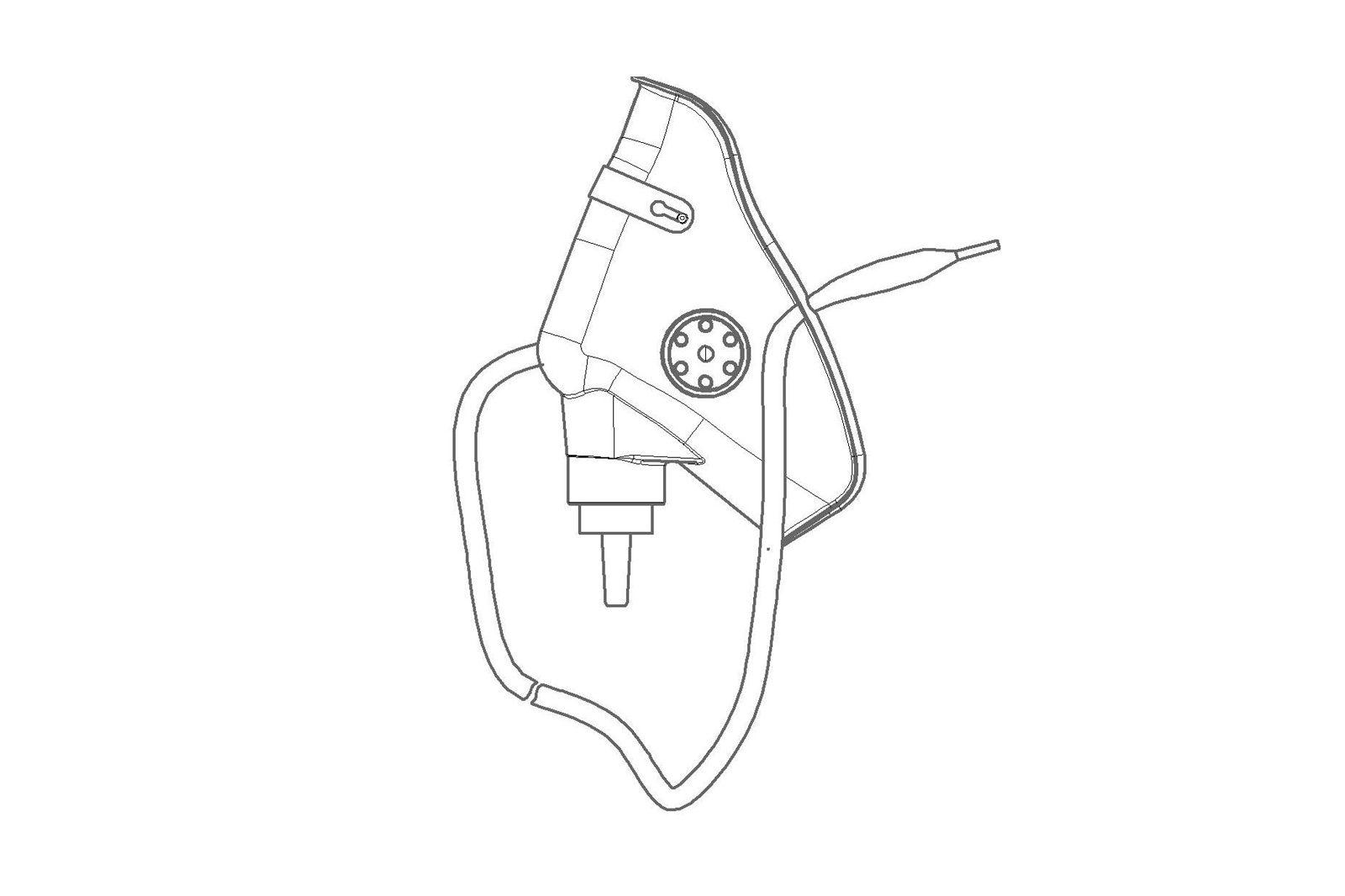

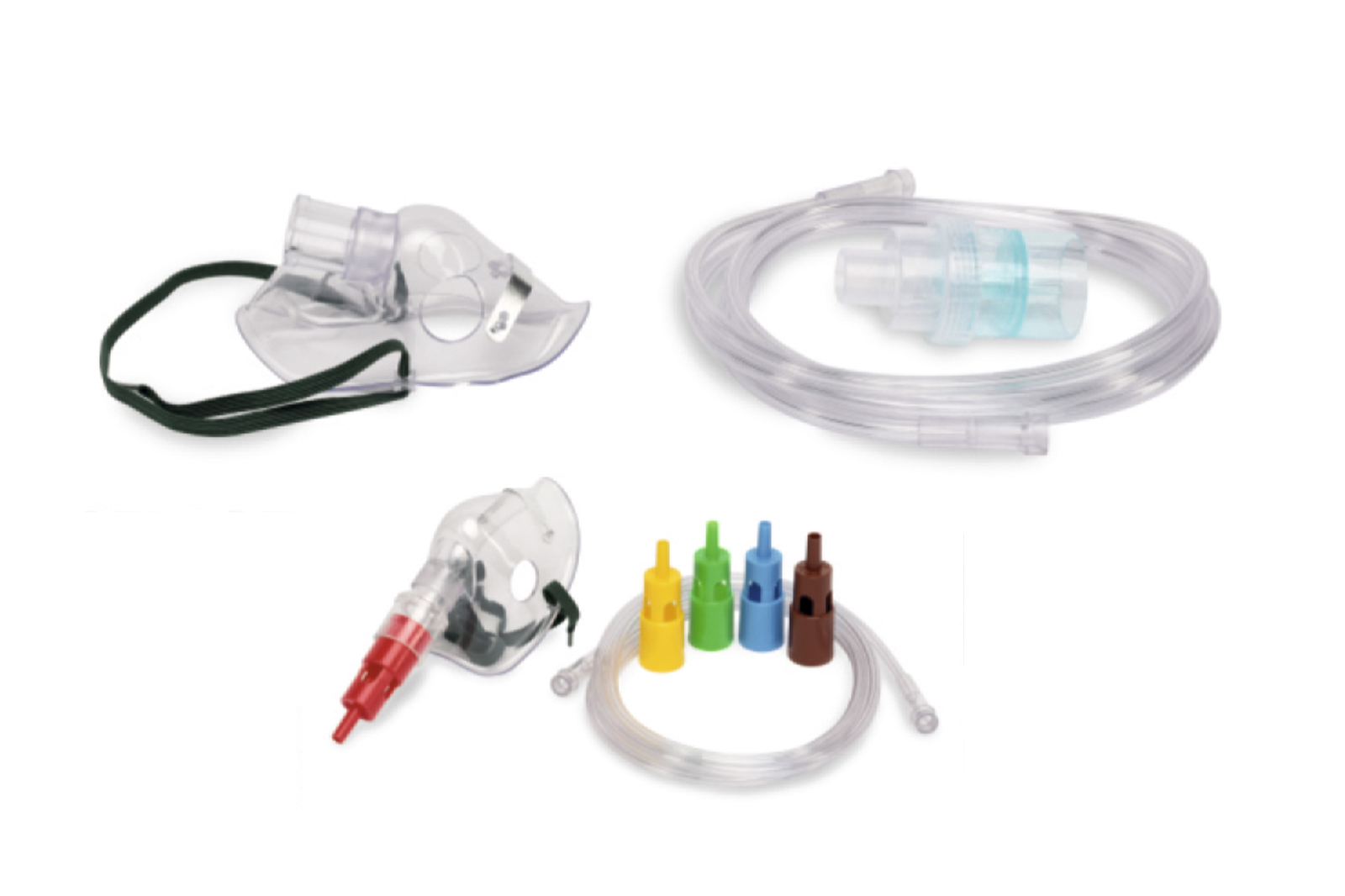

Masks may be supplied with tube (length from 1000 to 5000 mm), nebulizer, Venturi valve, flexible nose clip and disc valve.
For the fastest visual identification of the valve, color coding is applied, where each color corresponds to a specific oxygen concentration.

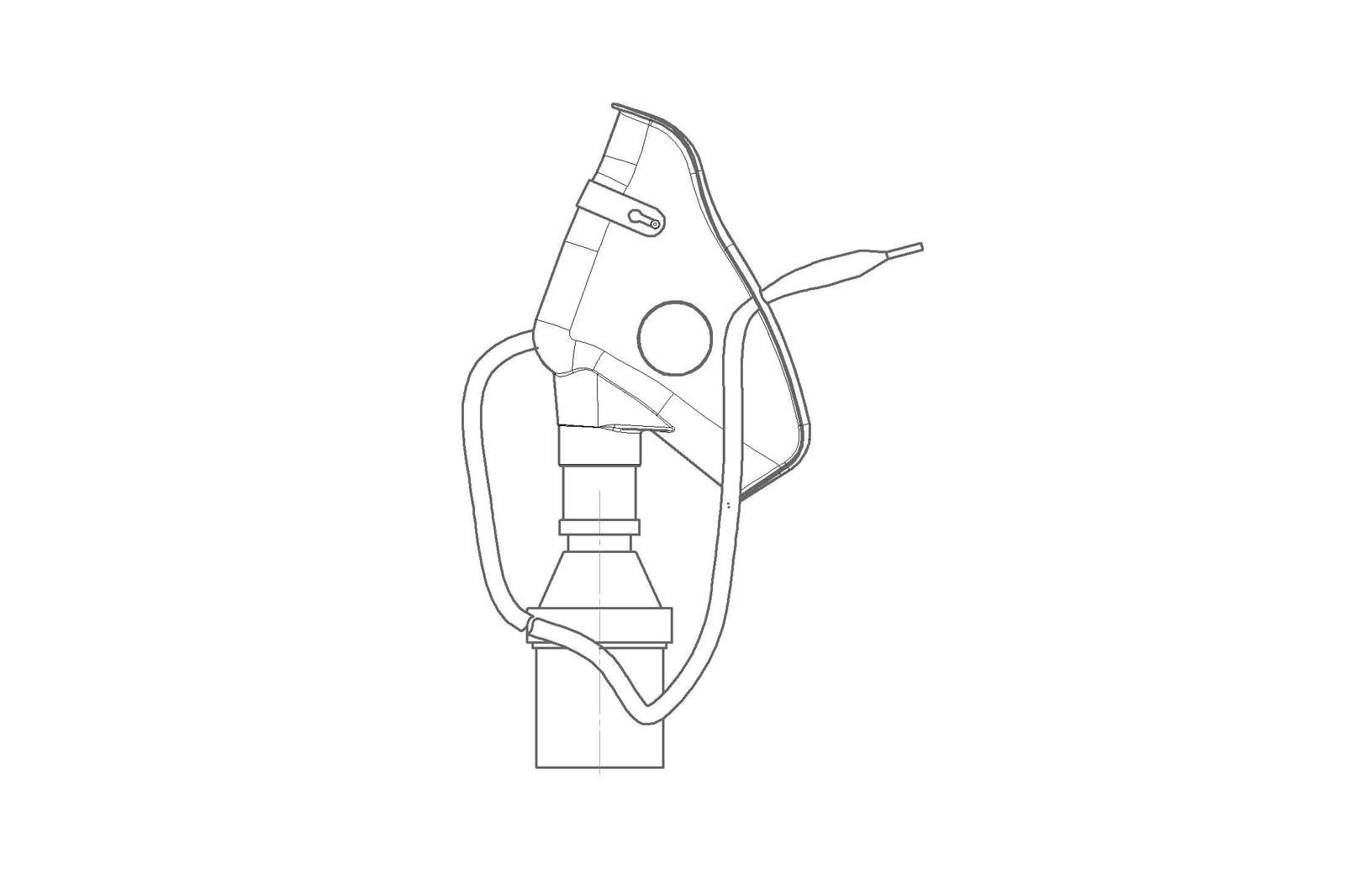

The mask is made of soft elastic polymer material.
It is easily fixed on the patient’s face using an elastic strap and flexible nose clip (to prevent injury to newborns, the mask size 1 is supplied without a nose clip).
The edges of the mask are atraumatic: rounded and smooth, ensuring high patient comfort.
Openings on the side surfaces of the mask provide proper ventilation.
The transparent material of the mask allows visual monitoring of the patient’s mucous membranes and skin condition, as well as monitoring the patient’s breathing.
The thermoplastic material of the mask softens at body temperature, preventing discomfort for the patient.
Non-sterile or sterilized with ethylene oxide.
Protection against moisture during storage.
Latex-free.
Non-pyrogenic, non-toxic, phthalate-free.
Shelf life (sterility) – 5 years from the date of manufacture.
Individually packaged.
Size -Patient category
0 – newborns
1 – newborns and infants up to 5 kg
2 – Infants and children from 5 to 25 kg
3 – Children from 25 to 50 kg
4 – Adult from 50 to 70 kg
5 – Adult from 70 to 90 kg
6 – Adult 90+ k
The single-use breathing mask is made of polymer materials.
Equipped with a soft inflatable cuff that provides atraumatic, airtight sealing of the mask to the patient’s face with minimal effort.
The mask has a nipple valve for cuff inflation.
A standard syringe is suitable for inflating the cuff.
The transparent material of the mask allows visual monitoring of mucous membranes and skin condition, as well as observation of the patient’s general condition.
Masks are equipped with standard connectors (sizes: 0, 1 – 15M; sizes: 2, 3, 4, 5, 6 – 22F) for connection to breathing circuit components and a removable retaining ring marked with color depending on the mask size.
Sizes: 0; 1; 2; 3; 4; 5; 6.
The reusable breathing mask is made of silicone.
The silicone material provides tight sealing and enhanced patient comfort.
The transparent material of the mask allows visual monitoring of mucous membranes and skin condition, as well as observation of the patient’s general condition.
Masks have standard connectors (sizes: 0, 1 – 15F; sizes: 2, 3, 4, 5 – 22F) for connection to breathing circuit components.
Sizes: 0; 1; 2; 3; 4; 5.
Can be supplied with a mask holder.
Airway
Inflatable cuff
Inflation line
Inflation valve
Pilot balloon for pressure monitoring
Non-return valve
Size-Patient category
1 – children up to 5 kg
1.5 – children from 5 to 10 kg
2 – children from 10 to 20 kg
2.5 – children from 20 to 30 kg
3 – children/adults from 30 to 50 kg
4- adults from 50 to 70 kg
5 – aduils 70+ kg
Sterile products are packaged in individual sterile packaging.
Protection against moisture during storage.
Latex-free.
Non-pyrogenic, non-toxic, phthalate-free.
Shelf life (sterility) – 5 years from the date of manufacture.
Single-use with/without reinforcement
Size: 1; 1.5; 2; 2.5; 3; 4; 5.
Single-use silicone with/without reinforcement
Size: 1; 1.5; 2; 2.5; 3; 4; 5.
Reusable
Size: 1; 1.5; 2; 2.5; 3; 4; 5.

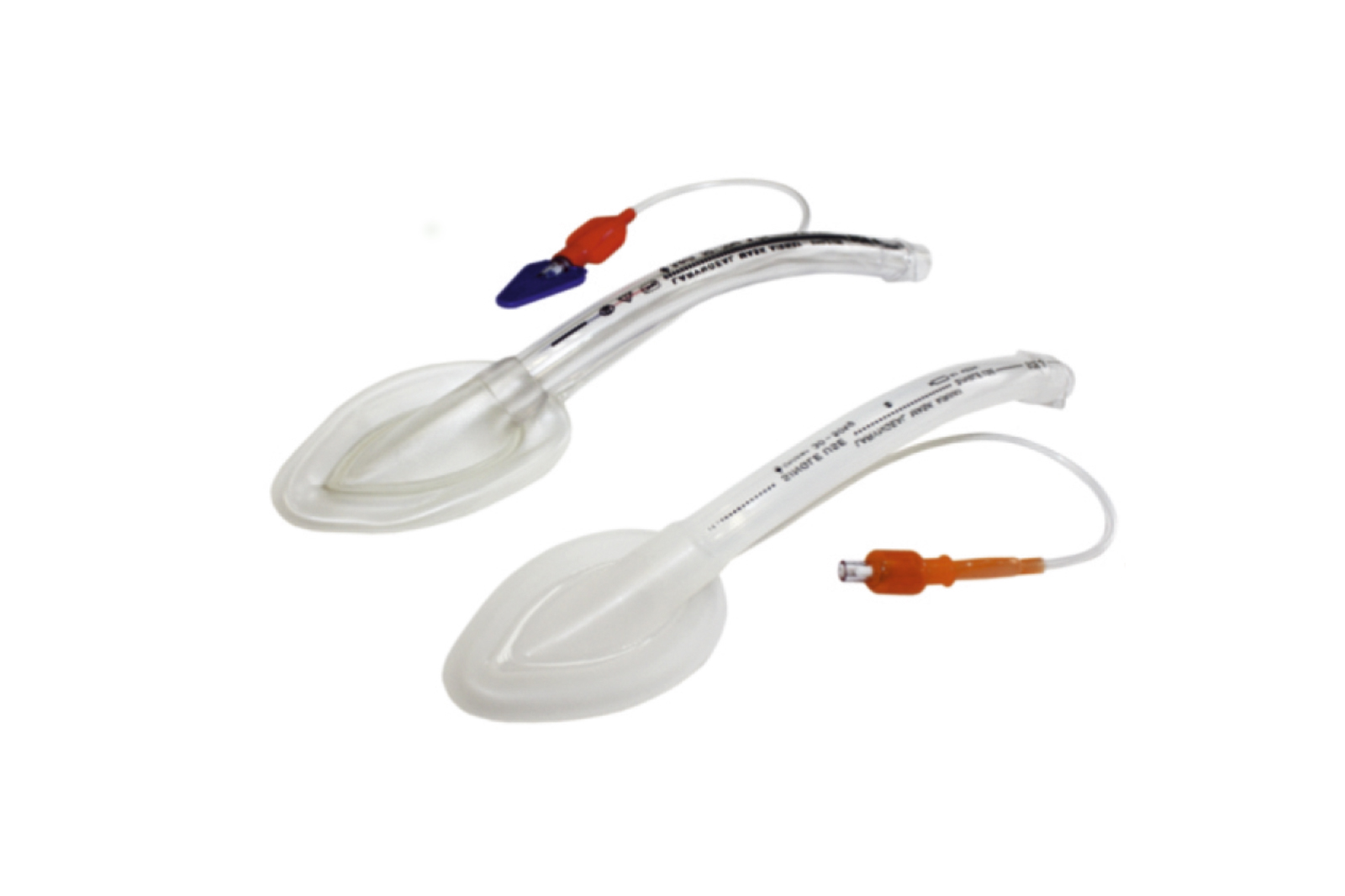

The single-use LM is made of high-quality thermoplastic implant-grade non-toxic PVC or silicone. The reusable LM is made of high-quality silicone, providing smooth insertion.
The airway tube has an anatomical curvature, a large lumen diameter, is equipped with a standard 15 mm connector, and may be reinforced.
The tube is marked with: mask size, cuff volume and patient weight range.
The transparent tube material allows easy monitoring of condensation and fluids that may appear inside the tube.
The LM is equipped with a soft inflatable cuff, ensuring reliable sealing with minimal risk of damage to the oropharyngeal tissues.

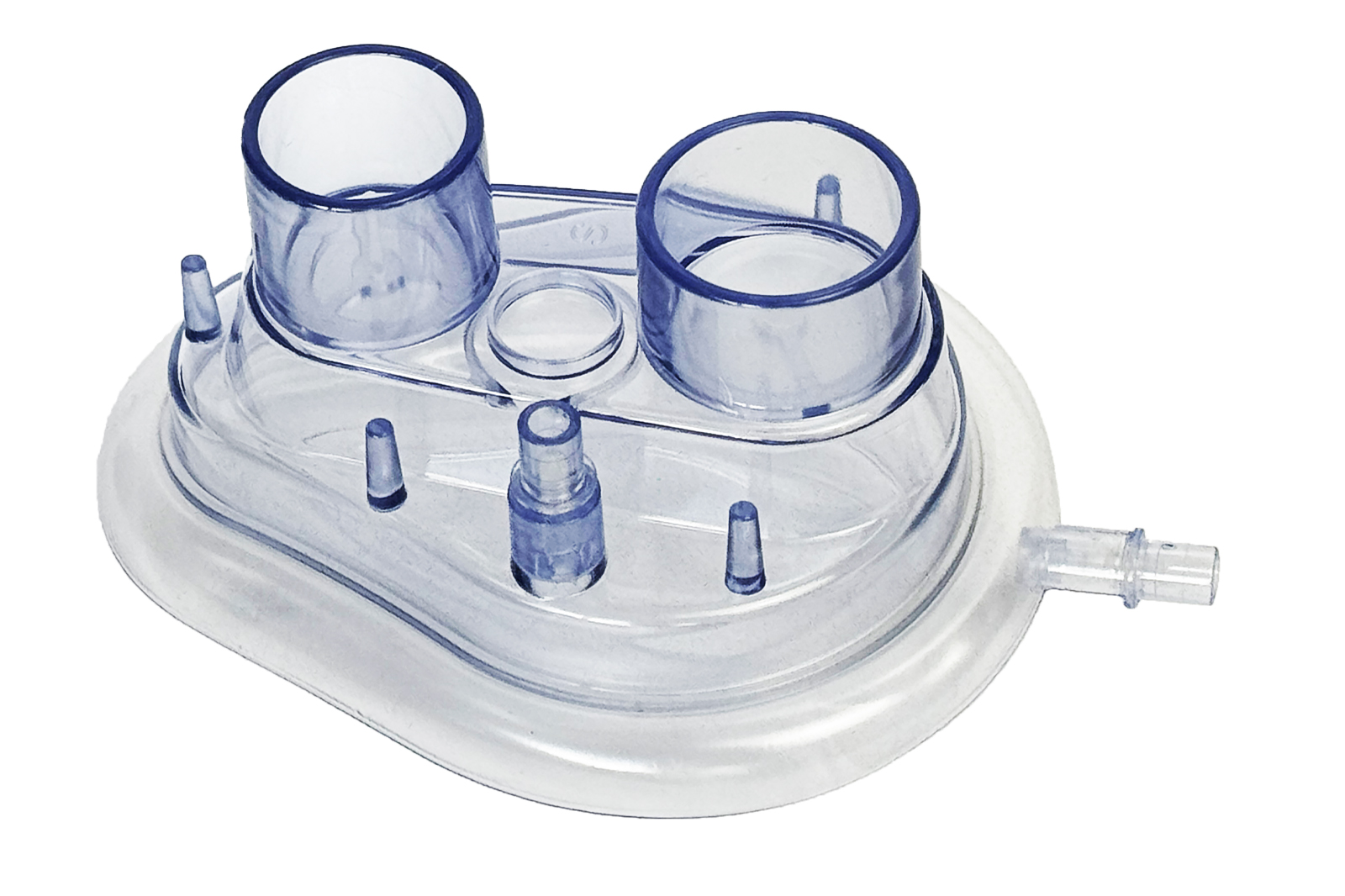

Designed to ensure uniform delivery of air/oxygen into the airways through the nose under low pressure without insertion of a tube into the trachea.
Non-sterile or sterilized with ethylene oxide.
Protection against moisture during storage.
Latex-free.
Non-pyrogenic, non-toxic, phthalate-free.
Shelf life (sterility) – 5 years from the date of manufacture.
Individually packaged.
Sizes: S, M, L, XL
May be supplied with a head fixation strap.
The single-use mask is made of soft elastic plasticized polymer material.
The reusable mask is made of silicone.
The mask is equipped with an inhalation valve, allowing breathing in case of insufficient flow or blockage of the inhalation line.
For maximum tightness and patient comfort, the mask includes an inflation valve.
The transparent material of the mask allows visual monitoring of mucous membranes and skin condition, as well as observation of the patient’s general condition.
Non-sterile or sterilized with ethylene oxide.
Protection against moisture during storage.
Latex-free.
Non-pyrogenic, non-toxic, phthalate-free.
Shelf life (sterility) – 5 years from the date of manufacture.
Individually packaged.
Single-use
Size: 1; 2; 3; 4; 5.

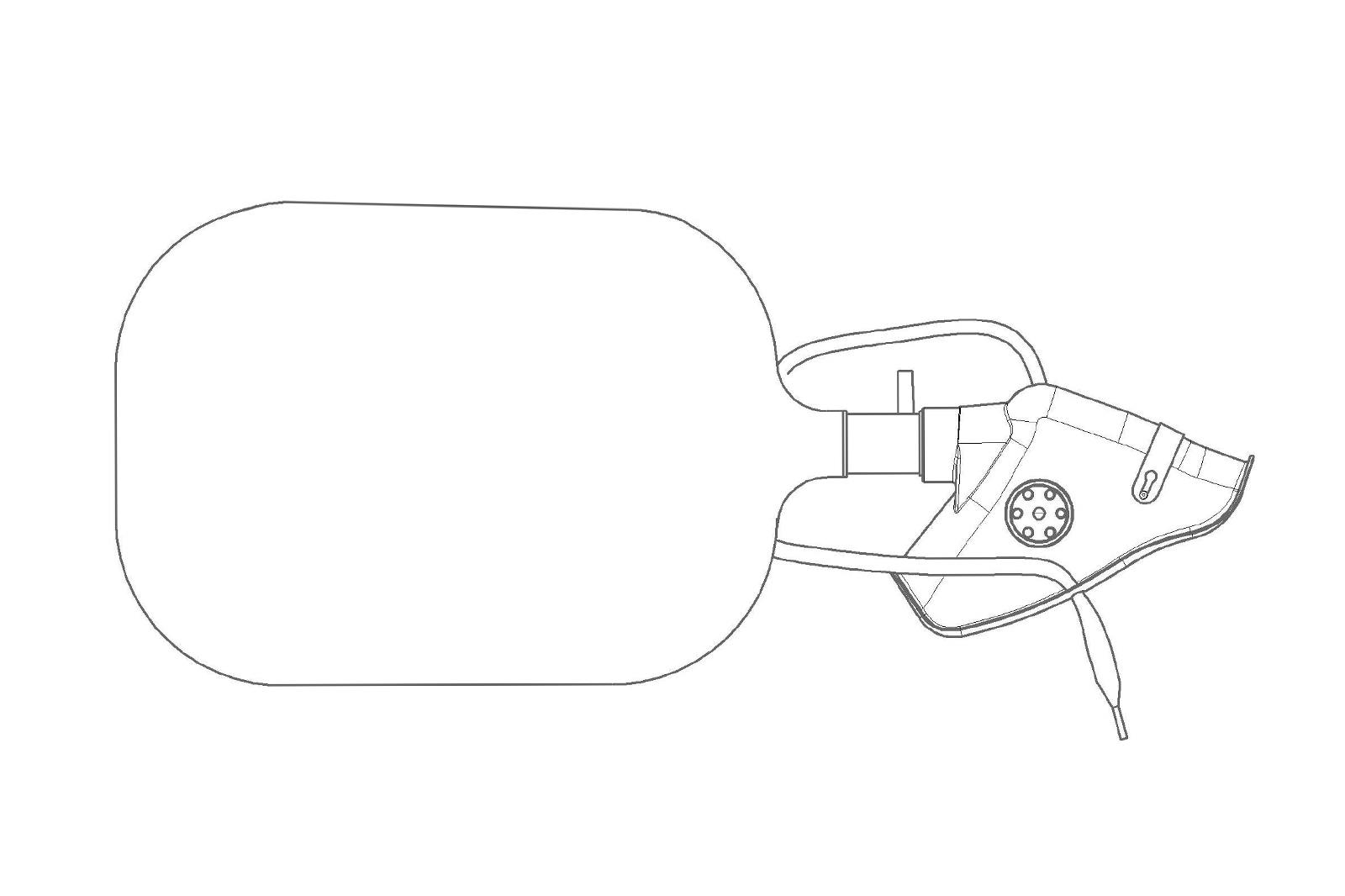

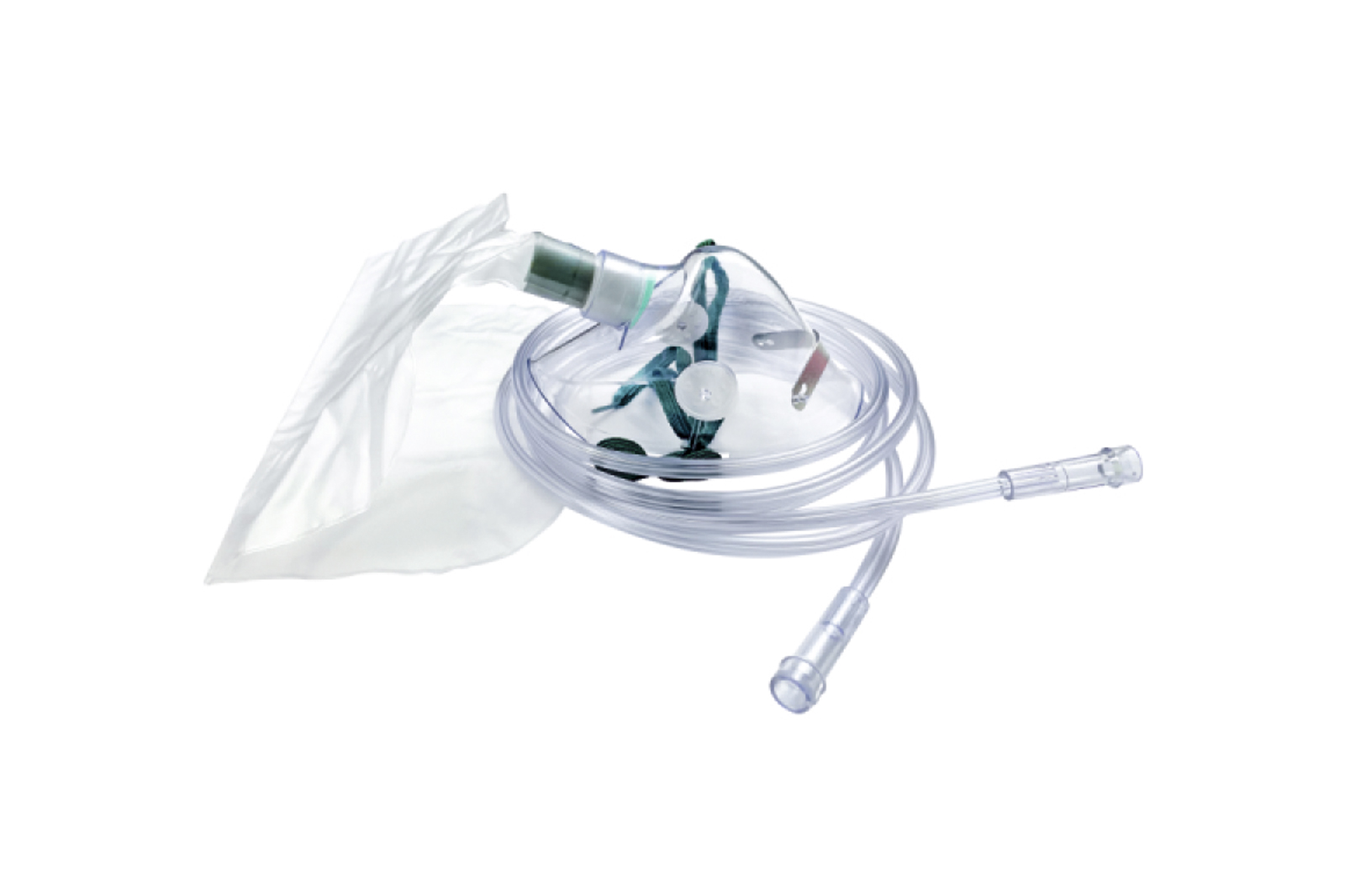

The mask may be supplied with a reservoir bag and tube (tube length from 1000 mm to 5000 mm)
The mask is made of soft elastic polymer material.
It is easily fixed on the patient’s face using an elastic strap and flexible nose clip (to prevent injury to newborns, the mask size 1 is supplied without a nose clip).
The edges of the mask are atraumatic: rounded and smooth, ensuring high patient comfort.
Openings on the side surfaces of the mask provide proper ventilation.
The transparent material of the mask allows visual monitoring of the patient’s mucous membranes and skin condition.
The thermoplastic material of the mask softens at body temperature, preventing discomfort for the patient.
In versions with a reservoir bag, the side openings are equipped with valves, allowing maximum oxygen concentration to be achieved.
